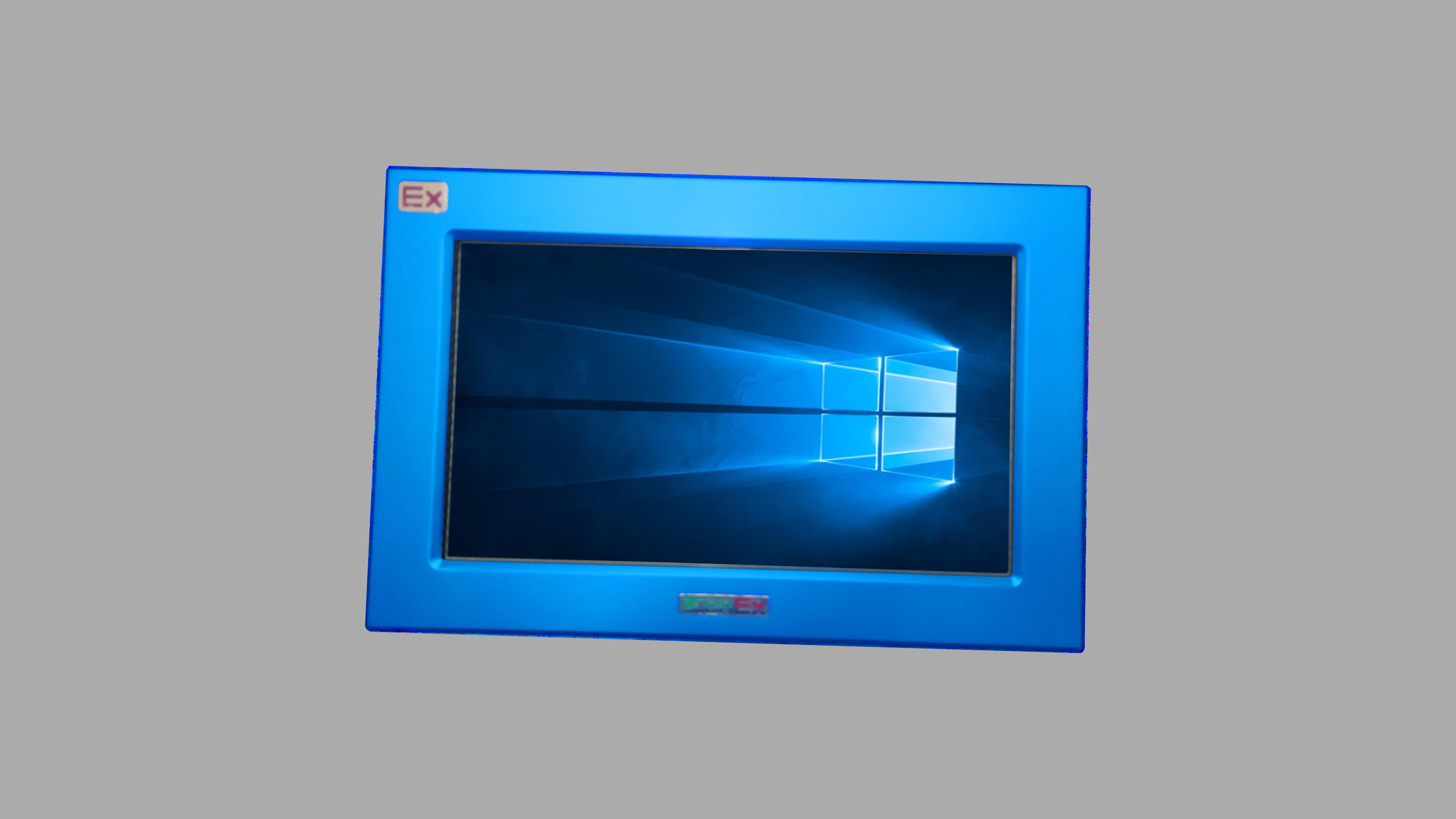

XY900_DR Explosion-proof IPC（industrial integrated computer）

Products > Industrial tablet computer > XY900_DR Explosion-proof IPC（industrial integrated computer）

XY900_DR Explosion-proof IPC（industrial integrated computer）

Full metal explosion-proof housing， certification passed for whole device
Explosion-proof designed touch screen， ESD protected， can be operated directly in explosive area
Corrosion resistant touch panel to meet harsh environmental requirements
Flexible configuration of processor， memory， and hard disk
Dual Ethernet ports provides redundancy connection
Unique fanless efficient heat sink design to avoid device fault caused by fans
Industrial-grade design standard， highly reliability and stability. Operating environment temperature：-40℃~+55℃
Explosion-proof design， suitable for use in explosive gas environment Zone 1，2， and explosive dust environment Zone 21，22
Suitable for use in hydrogen environment

Product details

Model	XY900_DR
Type	PC（Computer）
Screen type	TFT LCD / LED back light
Screen size	12.1"	15"	17"		19"	15.6"	18.5"	21.5"/23.8”
Resolution	1024*768（4：3）		1280*1024(5：4)			1920*1080(16：9)
Brightness	300 cd/m² / 600 cd/m²(customized）
Back light	50000 hours
Operation	touch panel
CPU	Intel Core i5 @upto 3.5GHz ，Intel Core i7 @upto4.6GHz
RAM	8 GB ，16GB
Memory	128GB，256GB，512GB，1TB； SSD
Ethernet	2*10/100/1000 MbpsEthernet，RJ45
Serial port	4 * RS232 & 1*RS485，RS422，RS232
USB	4 * USB Device 3.0，scalable 2*USB 2.0
Operating system	Windows 7，Windows 10，Windows 11
Operating temperature	NT：0～50℃/ LT：-20～60℃/ WT：-40～60℃
Storage temperature	-10～60℃/-40～70℃
Environment humidity	10 ～90 % RH (no condensation)
Voltage level	110~220VAC or 110VDC / 24VDC
Rated power	25W Max 60W
electrical interface	XY900_DR：5*M20			XY900_DR：7，8*M20		XY900_DR：6/8*M20
Button/Indicator	Max 4 (only XY800_D)			Max 5		Max 6 (only XY800_D)
Protection level	IP66(whole machine)
Ex-proof mark	XY900_DR：Ex nR IIC T6 Gc；Ex tb IIIC T80℃ Db
