XY-100 handheld Bar Codescanner

Products > XY-100 handheld Bar Codescanner

XY-100 handheld Bar Codescanner

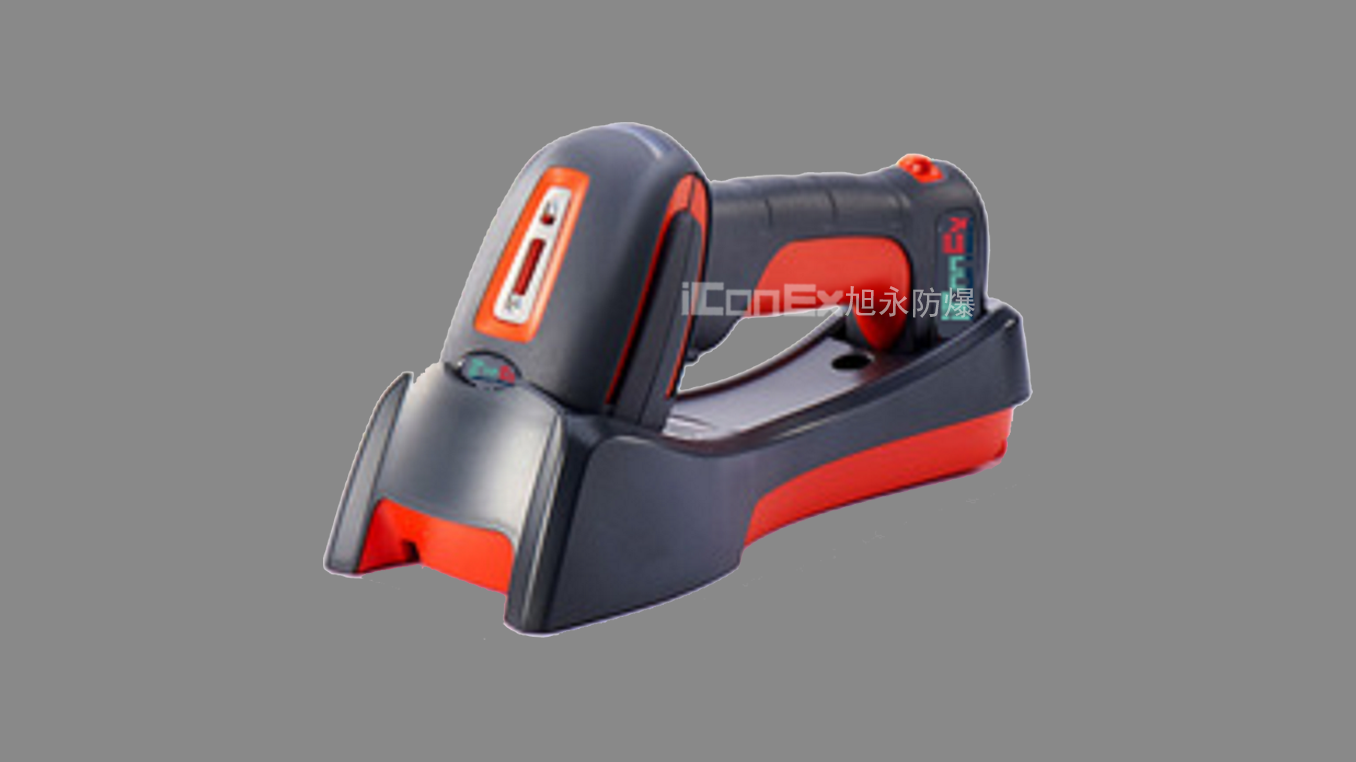

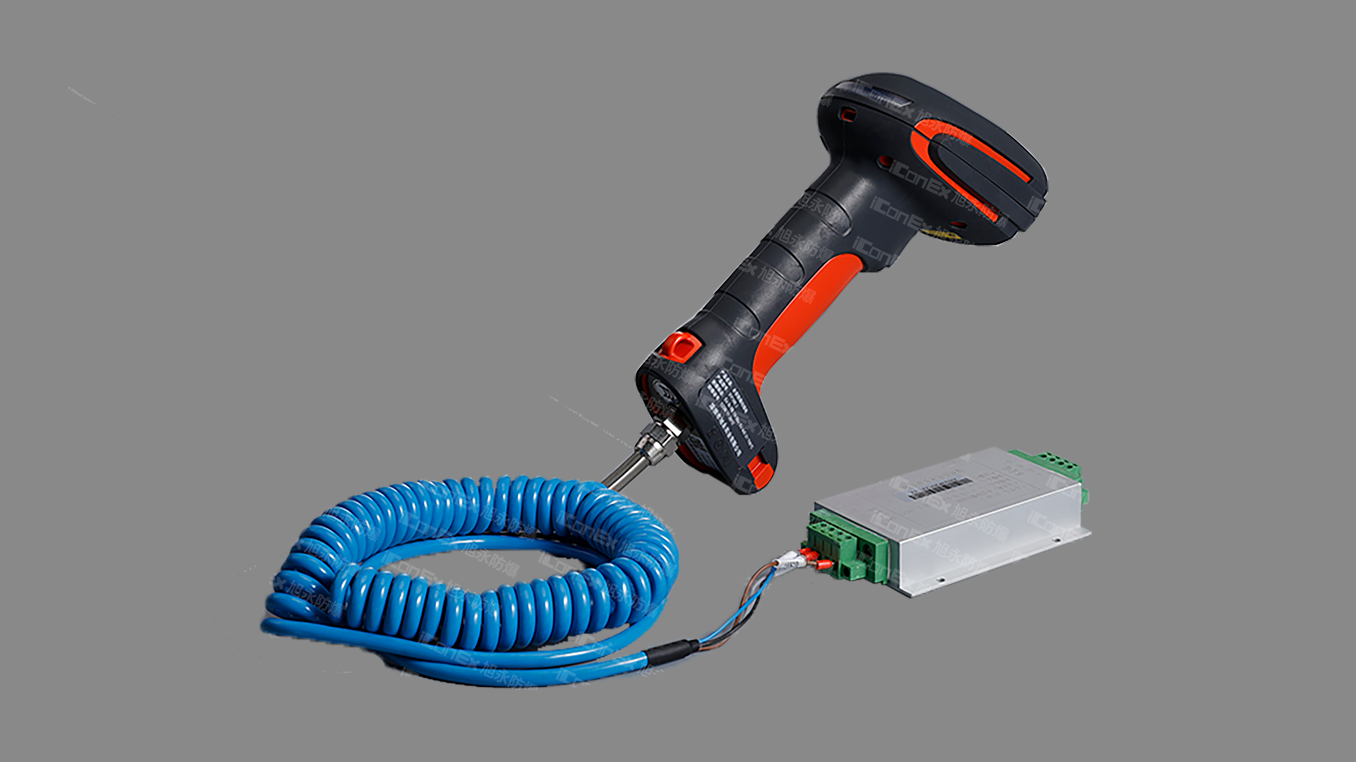

Wired handheld， wireless handheld
Explosion-proof design， gas and dust certification， matching certificated safety grid
Can be used in various harsh environments, including withstanding 3 meter drops, 7000 1-meter rolls, operating temperatures ranging from -30 ° C to 50 ° C, which can reduce maintenance costs and extend equipment normal operation time
Provide ultimate performance scanning, even for damaged and low-quality barcodes. The scanning and transmission speed of high-quality barcodes is faster than before
It is very suitable for far-field scanning operations on one-dimensional and two-dimensional barcodes. Can scan UPC at a distance of 2 meters and 100 mil barcode at a distance of 24 meters
Communication interface and protocol: RS232, RS458, Modbus RTU, Modbus TCP, Profinet
Industrial grade design, protection level IP66/65
Intrinsically safe explosion-proof，Zone 1,21.

Product details

Model	XY100_I（wire），XY100_II（wireless）
Type	explosion-proof barcode scanner
Scanning method	Two-dimensional image scanning (830*640 pixels)
Decoding ability	automatically recognize all standard one-dimensional barcodes and GS1，PDF417，MICROPDF，MaxiCode，DataMatrix，QRCode，UCC，EAN Composites，Postaos，Aztec
Reading distance	200mm / 500mm optional
Scanning angle	ER focus： horizontal 31.6°； vertical 24.4°
Scan speed	up to 200/500 times/sec
Wireless scanning	100m sight range， one communication base can support 7 scanners wireless bluetooth communication
Host interface	serial port	RS232：ASCII free Agreement (American Standard Code for Information Interchange)
		RS485：ASCII free Agreement (American Standard Code for Information Interchange)
		RS485：Modbus_RTU、PROFIBUS_DP
	network port	RJ45：industrial Ethernet MODBUS_TCP（network cable， optical fiber）
		RJ45：industrial Ethernet PROFINET（network cable， optical fiber）
Power	RS232：5VDC，RS485：24VDC，RJ45：24VDC
Operating temperature	XY100_I： –30 ～ 55℃；XY100_II： –40 ～ 60℃
Storage temperature	–40～70℃
Environment humidity	0～95% RH (no condensation)
Protection level	IP65/IP66
Explosion-proof mark	XY100_I： Ex ib IIB T6 Gb / Ex ibD 21 T85℃
	XY100_II： Ex ib IIB T4 Gb / Ex ibD 21 T130℃
