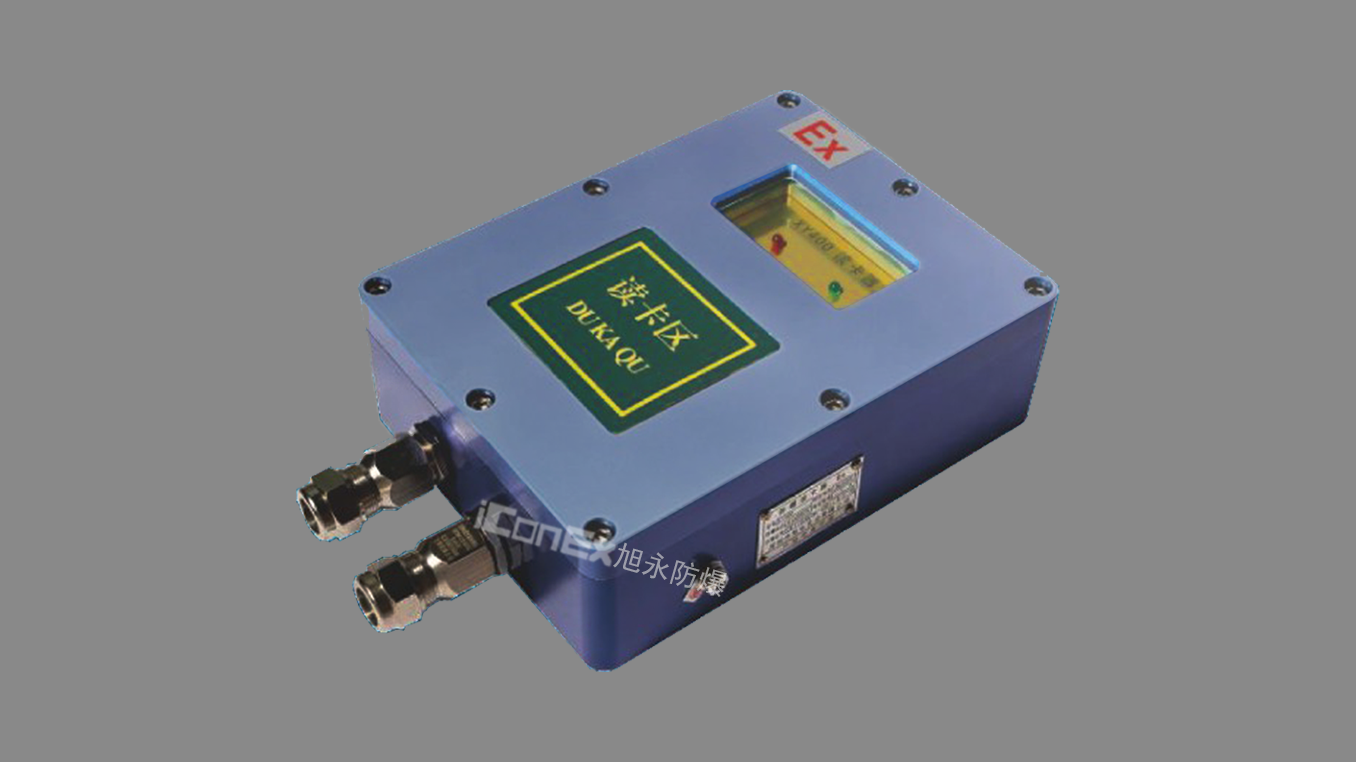

XY400 Explosion-proof Card Reader
XY400 Explosion-proof Card Reader
RS485 communication adopts MODBUS_RTU protocol
Relay output： 2 pieces of 24V/0.5A (optional)
Support M1 (MifareS50/S70)， CPU card， access control IC card/ID card
Support customer card reader built-in customization
Industrial-grade design standard， highly reliability and stability. Operating environment temperature： -40℃~+60℃
Explosion-proof ：Zone 1，Zone 21
Model | XY400 |
Display window | red light： power indicator， green light： card reading indicator |
Communication Interface | 1 RS485 interface |
Communication protocol | Modbus RTU (IC card only) or Wiegand protocol (Wiegand 26， Wiegand 34) |
Card type | M1 (MifareS50/S70)， CPU card， access control IC card/ID card |
Relay output | two 24VDC/0.5A (optional) |
Working frequency | 13.56MHz (IC) or 125KHz (ID) |
Operating temperature | NT： 0～50℃ / LT： -20～60℃ / WT： -40～60℃ |
Storage temperature | -40～70℃ |
Environment humidity | 10 ～90% RH (non-condensing) |
Operating Voltage | 24VDC ±10% or 12VDC ±10% (Wiegand) |
Working current | ＜120mA |
Electrical Interface | 2*M20x1.5 explosion-proof sealed joint |
Protection level | IP65 |
Explosion-proof mark | Ex db IIB T6 Gb；Ex tb IIIC T80℃ Gb |
