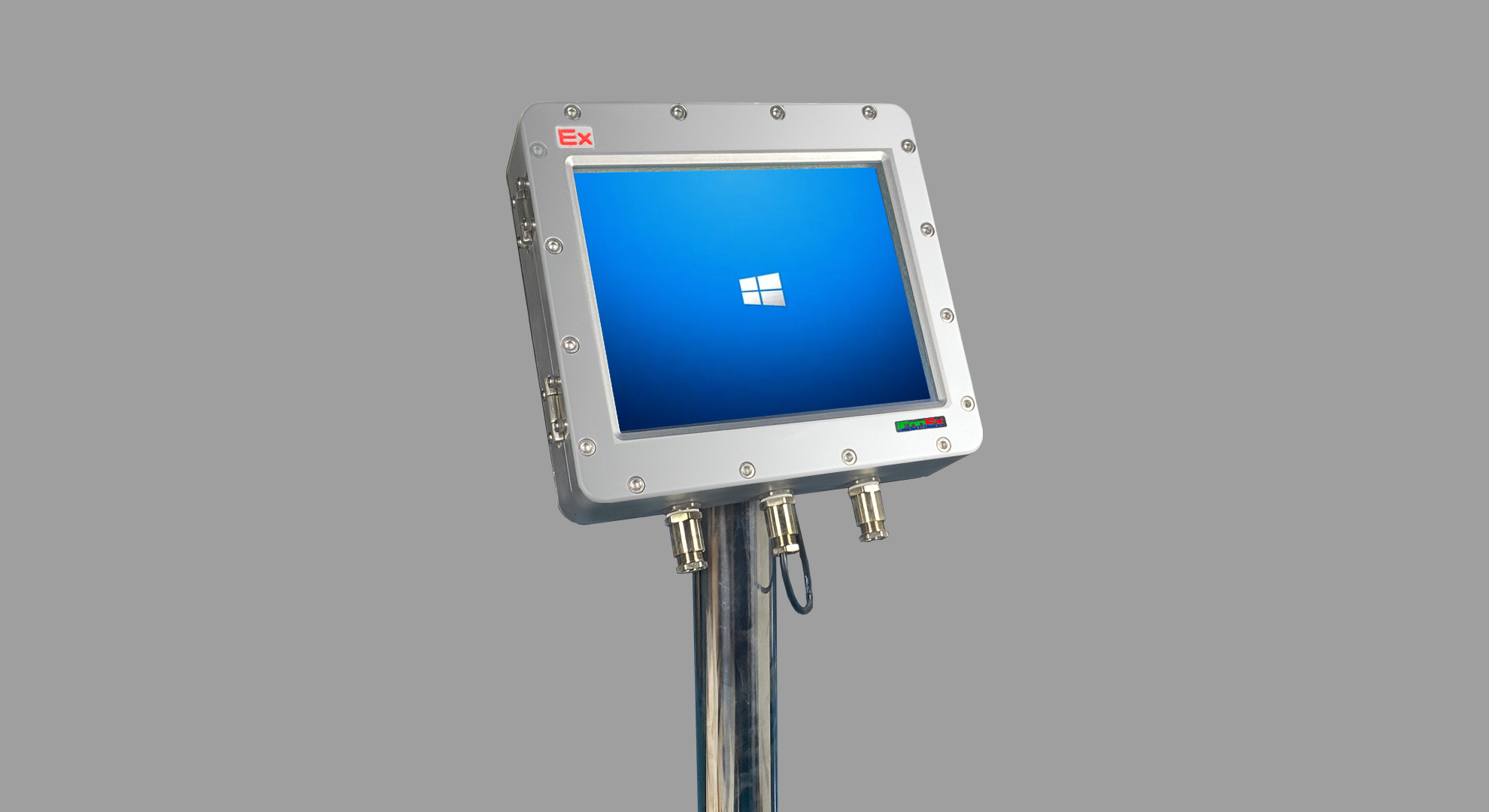

XY800 Explosion-proof Remote operation terminal
XY800 Explosion-proof Remote operation terminal
KVM technology： Extended keyboard， video and mouse to remote operation
It can communicate with host computer in the security zone for a maximum connection distance of 20KM
Multiple remote terminals can be connected to one host computer
Industrial-grade design standard， highly reliability and stability. Operating environment temperature： -40℃~+60℃
Explosion-proof design， suitable for use in explosive gas environment Zone 2， and explosive dust environment Zone 21，22
Suitable for use in hydrogen environment
Model | XY800 | ||||||
Type | RT（Remote operation） | ||||||
Screen type | TFT LCD / LED back light | ||||||
Screen size | 12.1" | 15" | 17" | 19" | 15.6" | 18.5" | 21.5"，23.8" |
Resolution | 1024*768（4：3） | 1280*1024(5：4) | 1920*1080(16：9) | ||||
Brightness | 300 cd/m² / 600 cd/m²(customized） | ||||||
Back light | 50000 hours | ||||||
Operation | touch panel / keyboard & mouse | ||||||
Transmission distance | ≤150 meters（Cat5e）；＞150 meters(optical fiber)，max20Km | ||||||
Operating temperature | NT：0～50℃/ LT：-20～60℃/ WT：-40～60℃ | ||||||
Storage temperature | -10～60℃/-40～70℃ | ||||||
Environment humidity | 10 ～90 % RH (no condensation) | ||||||
Voltage level | 110~220VAC or 110VDC / 24VDC | ||||||
Rated power | 20W Max 50W | ||||||
Electrical Interface | XY800：4*M20 | XY800：4*M20 | XY800：6/8*M20 | ||||
Protection level | IP66(whole machine) | ||||||
Ex-proof mark | XY800：Ex db ib IIB+H2 T6 Gb；Ex ib tb IIIC T80℃ Db | ||||||
