Shenzhen Xuyong Industry Co., Ltd. Founded in 1996, it is a national high-tech enterprise, the source factory of explosion-proof intelligent control equipment, and the leading brand of explosion-proof man-machine in China!

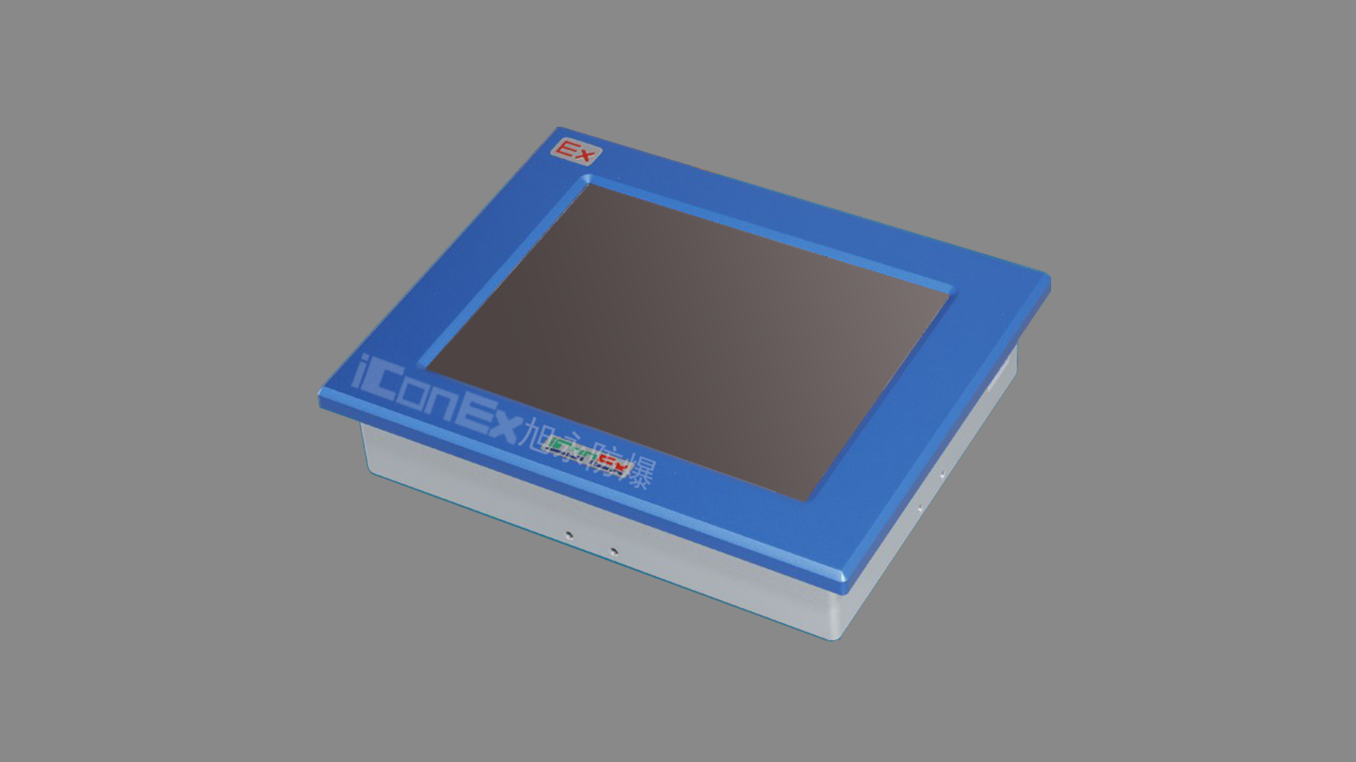

XY900_DR Explosion-proof display
XY900_DR Explosion-proof display
Full metal explosion-proof housing， certification passed for whole device
Wide viewing Angle， high brightness display to meet the needs of indoor and outdoor use
Can Touchable operation
Industrial-grade design standard，highly reliability and stability. Operating environment temperature：-40℃~+60℃
Explosion-proof design， suitable for use in explosive gas environment Zone 1、2， and explosive dust environment Zone 21，22
Suitable for use in hydrogen environment
Model | XY900_DR | |||||||||
Type | Mon(monitor) | |||||||||
Screen type | TFT LCD / LED back light | |||||||||
Screen size | 7" | 10.4" | 12.1" | 15" | 17" | 19" | 15.6" | 18.5" | 21.5"/23.8" | |
Resolution | 800*480 | 800*600 | 1024*768 | 1280*1024 | 1920*1080 | |||||
Brightness | 300 cd/m² / 600 cd/m²(customized） | |||||||||
Back light | 50000 hours | |||||||||
video interface | VGA / HDMI / DVI | |||||||||
Operation | touch panel | |||||||||
Operating temperature | NT：0～50℃/ LT：-20～60℃/ WT：-40～60℃ | |||||||||
Storage temperature | -10～60℃/-40～70℃ | |||||||||
Environment humidity | 10 ～90 % RH (no condensation) | |||||||||
Voltage level | 12VDC | 110~220VAC or 110VDC / 24VDC | ||||||||
Rated power | 8W Max 25W | 20W Max 50W | ||||||||
Electrical Interface | XY900_DR：5*M20 explosion-proof sealing joint | XY900_DR：7/8*M20 explosion-proof sealing joint | XY900_DR：6/8*M20 explosion-proof sealing joint | |||||||
Protection level | IP66(whole machine) | |||||||||
Ex-proof mark | XY900_DR： Ex nR IIC T6 Gc；Ex tb IIIC T80℃ Db | |||||||||
