XY900 Explosion-proof HMI

Products > Explosion-proof touch screen > XY900 Explosion-proof HMI

Explosion proof touch screen，Explosion-proof equipment，Professional manufacturer of explosion-proof products，Explosion proof manufacturer，explosion-proof,explosion-proof KVM，explosion proof monitor，ex-proof monitor，explosion proof HMI

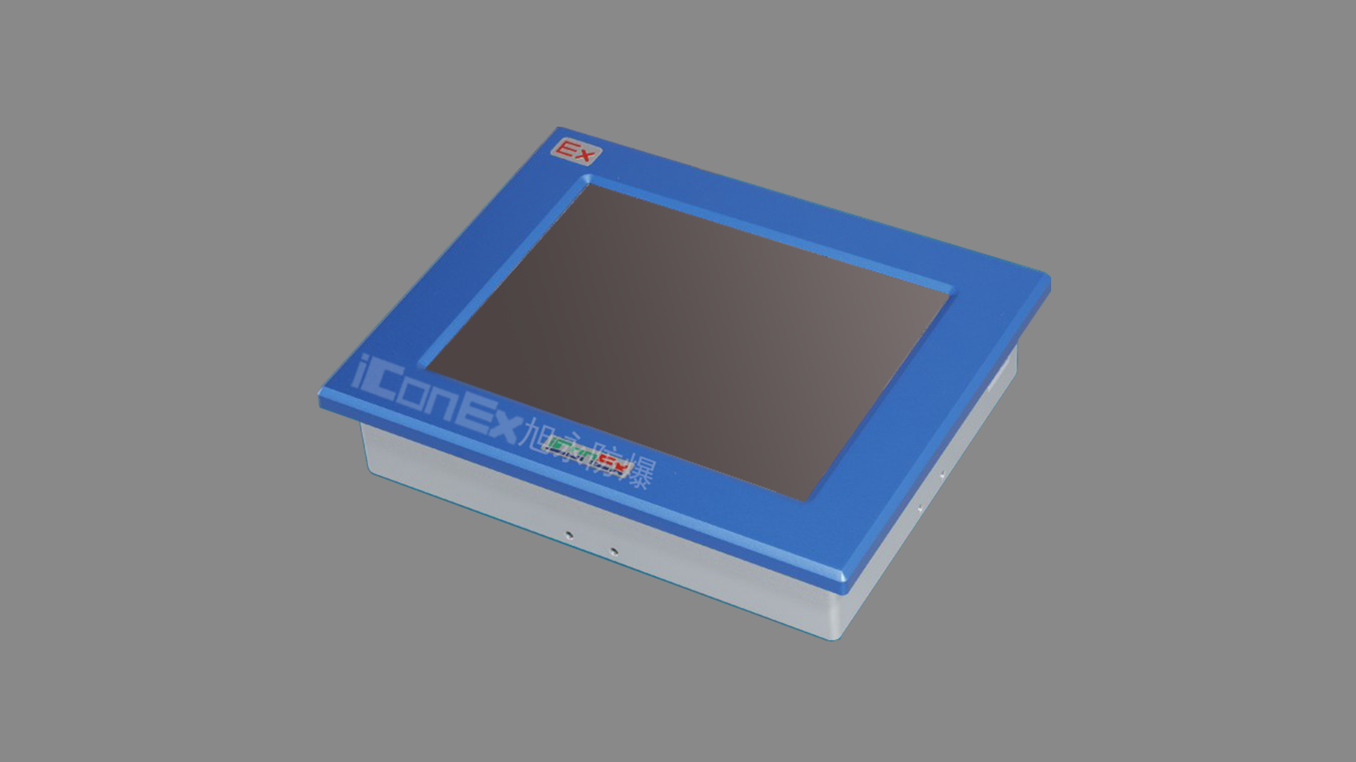

XY900 Explosion-proof HMI

Full metal explosion-proof housing， certification passed for whole device
Explosion-proof designed touch screen， ESD protected， can be operated directly in explosive area Corrosion resistant touch panel to meet harsh environmental requirements
Internal wiring without any electrical exposure
Can be equipped with external explosion-proof USB sleeve， external USB data access
Explosion-proof light， Explosion-proof power switch， Reset button， Emergency stop button，USB interface Industrial-grade design standard， highly reliability and stability. Operating environment temperature： -40℃~+60℃
Explosion-proof design， suitable for use in explosive gas environment Zone 1，2，and explosive dust environment Zone 21，22
Suitable for use in hydrogen environment

Product details

Model	XY900
Type	HMI (Human-Machine Interface)
Screen type	TFT_LCD / LED Back light
Screen size	7"	10.4"	12.1"	15"
Resolution	800*480	800*600		1024 *768
Screen color	16.77M color
Brightness	300 cd/m²		450 cd/m²	420 cd/m²
Back light	50000 hours
Operation	touch panel/key panel(XY600)
CPU	ARM RISC 32Bit 800MHz
Memory	128M NAND Flash ， 128M DDR3 DRAM
Expansion storage	1 USB Host （≤16G）
Communication interface	1* 10M/100Mt ethernet RJ45 port		1* 10M/100M ethernet RJ45 port
	1*RS232/RS485/RS422		2*RS232/RS485/RS422
USB	1* USB Host： upload/download programs and store data
	1* USB Slave：upload/download program and set HMI system parameters
Configuration software	XYFD2000
Program download	supports local download via U-disk/download from USB port/network port
Operating temperature	NT：0～50℃ / LT：-20～60℃ / WT：-40～60℃(XY900/XY600： -40～55℃)
Sstorage temperature	-10～60℃/-40～70℃
Environment humidity	10～90 % RH (no condensation)
Voltage level	24VDC， workable range 21～28V DC
Rated power	4W Max 8W	8W Max 10W	10W Max 12W	13W Max 15W
Electrical Interface	3* M20 explosion-proof sealing joint		4* M20 explosion-proof sealing joint
Button/Indicator	Max 3 (only XY800_D)		Max 4 (only XY800_D)
Protection level	IP66/IP65(XY600)
Explosion-proof mark	XY900：Ex ib nR IIC T6 Gc；Ex ib tb IIIC T80℃ Db
